Unlock the full potential of your RF projects with the Spectrum Analyzer NanoVNA-H4—a cutting-edge tool engineered for precision and convenience in antenna analysis, tuning, and testing. Whether you're a seasoned RF engineer or a hobbyist, this NanoVNA-H is your go-to device for measuring and analyzing antenna performance across the 10KHz-1.5GHz frequency range.
Why Choose NanoVNA-H4?

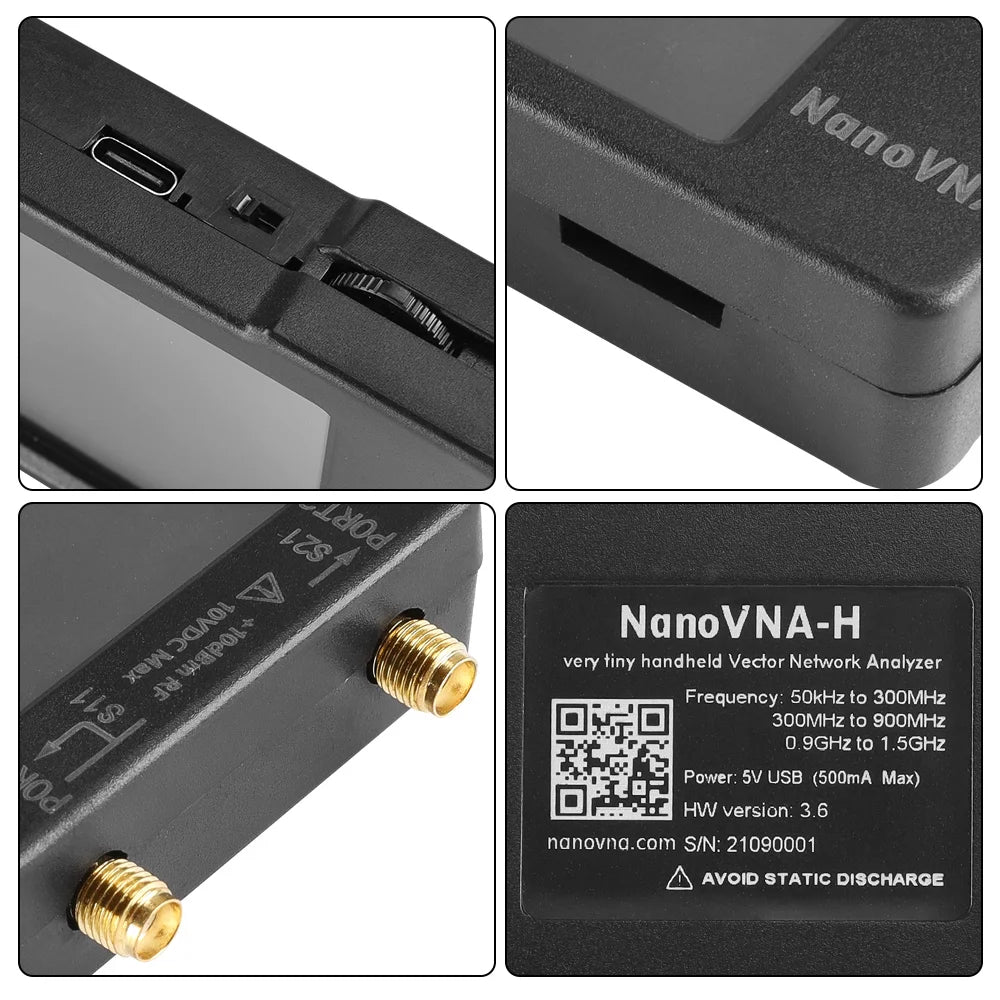

Enhanced Design for Better Performance: Say goodbye to fragile 3D-printed enclosures! With a robust ABS casing and upgraded packaging, the NanoVNA-H4 ensures durability and reliability in all conditions, even during transport.

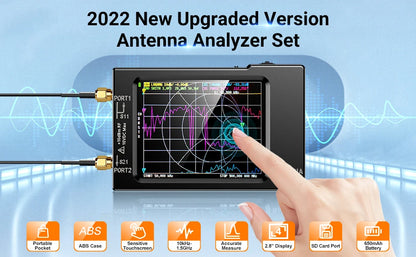

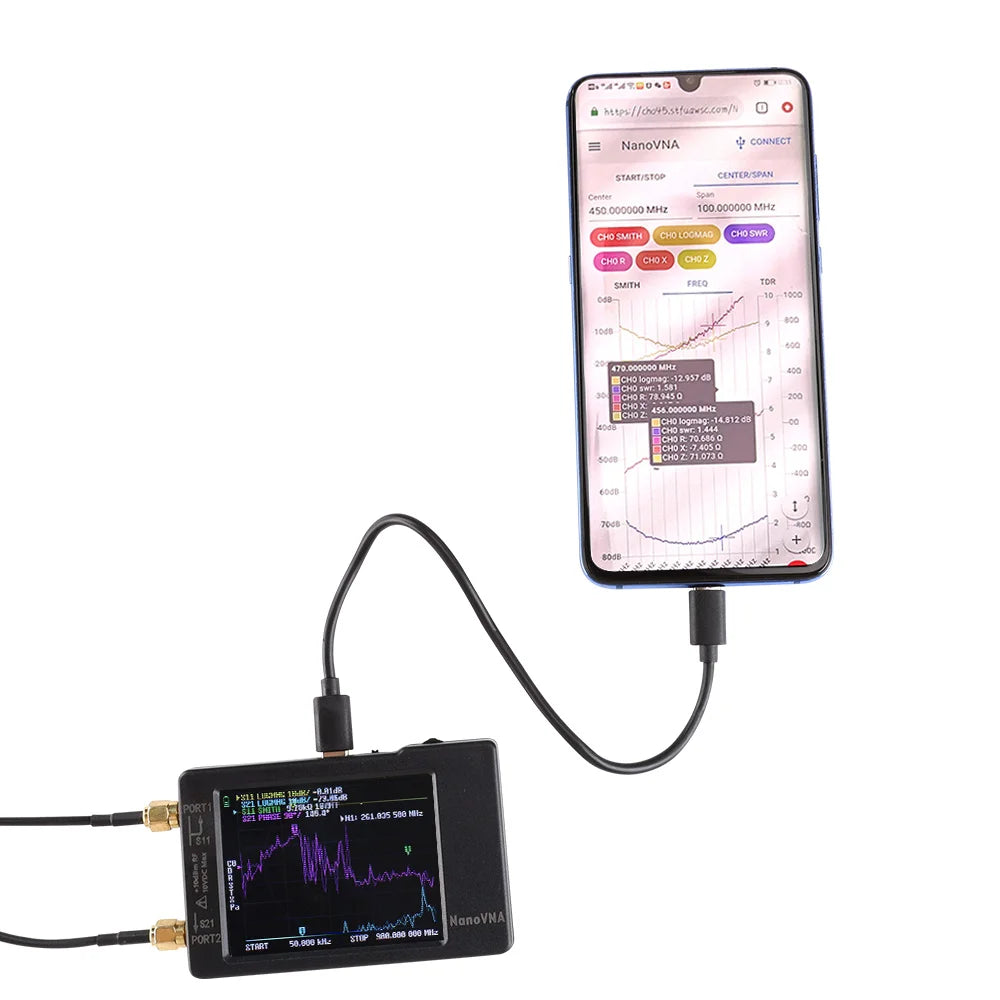

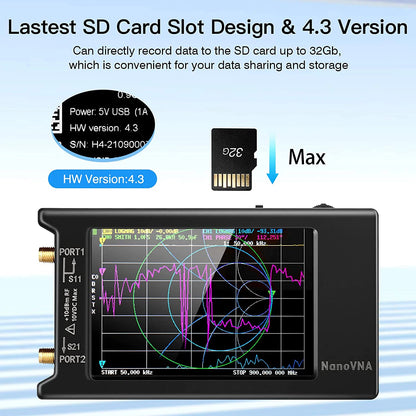

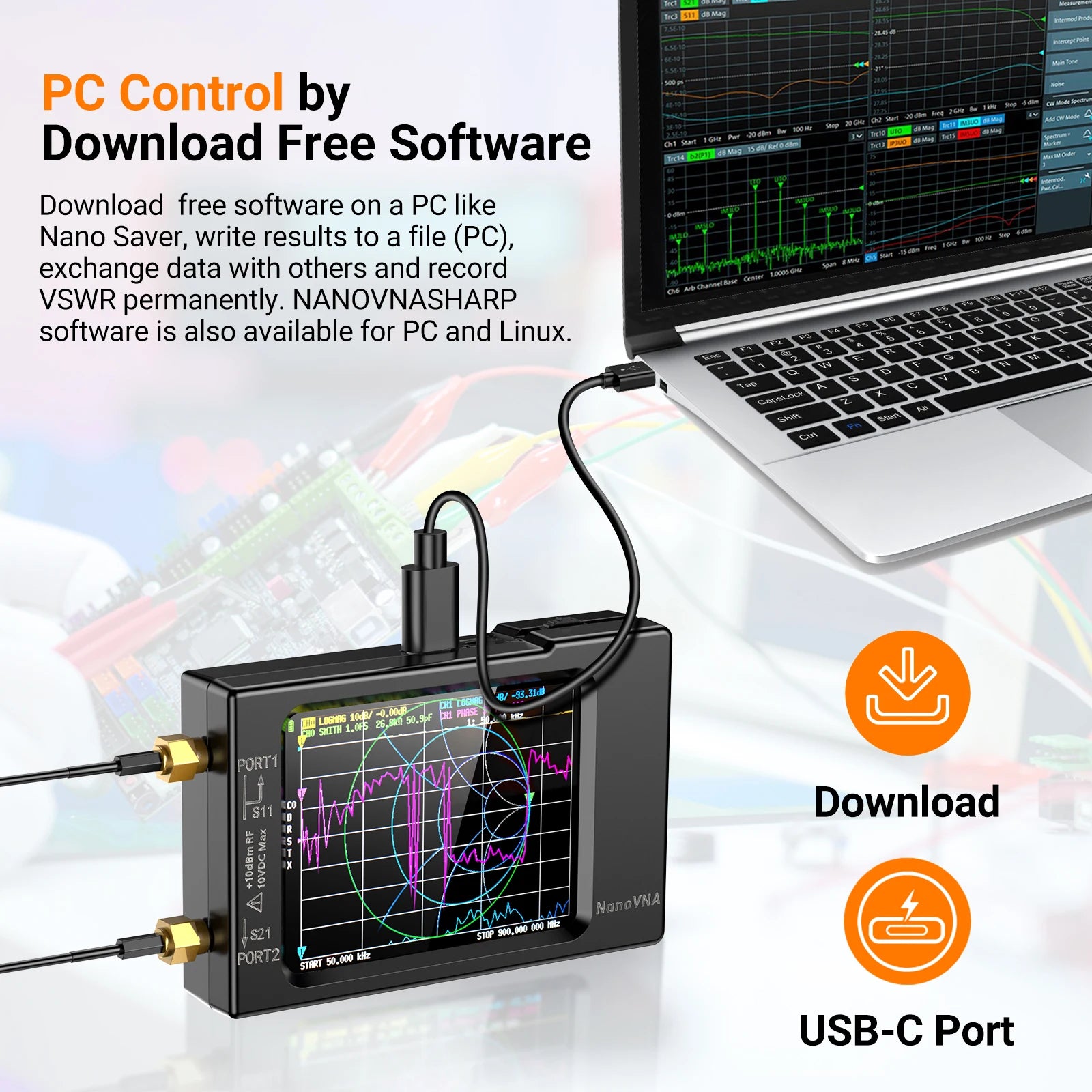

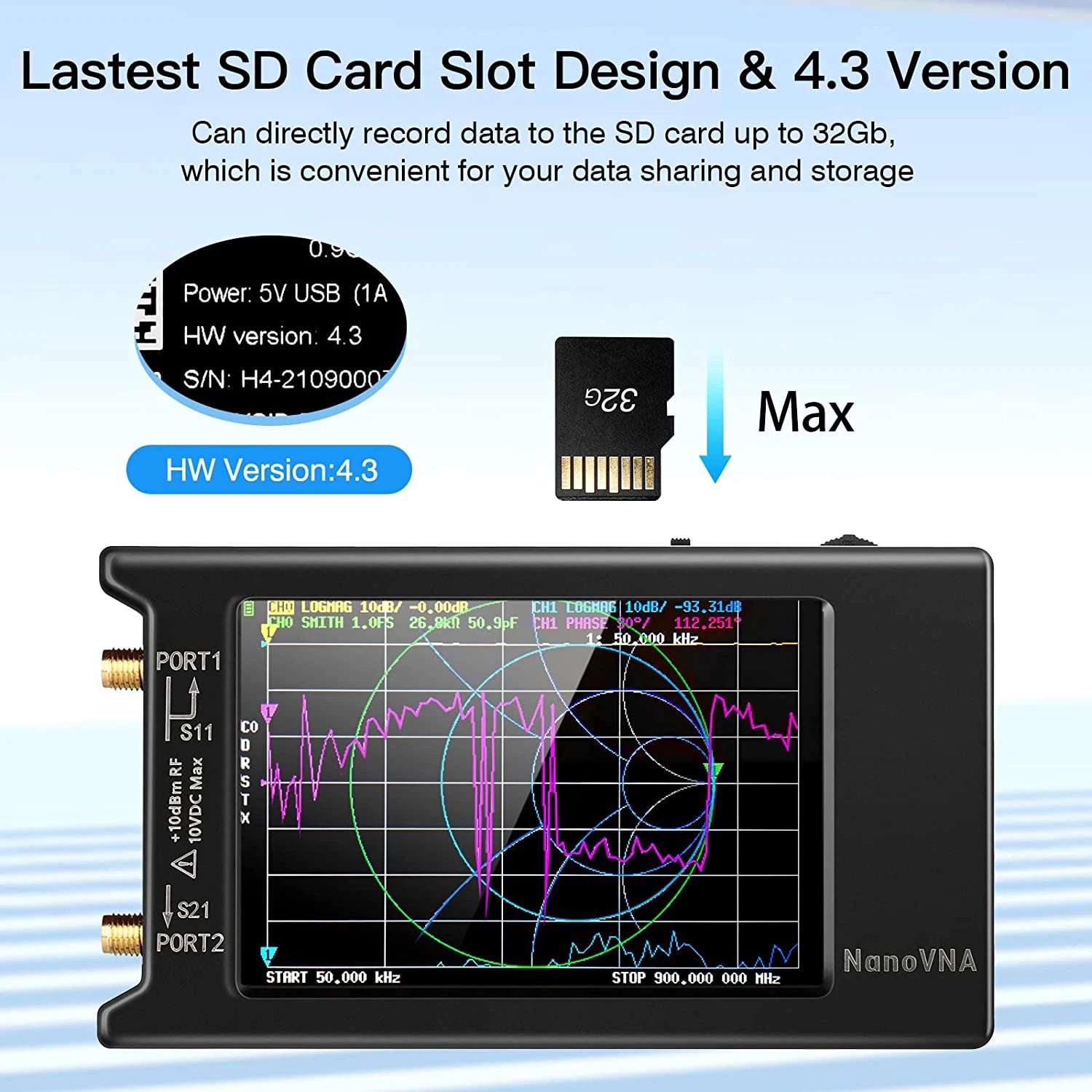

Portable and Convenient: Featuring a 2.8-inch TFT display (320x240 resolution) and an ultra-portable design, this spectrum analyzer is perfect for on-the-go RF testing. Plus, it supports a Type-C to Type-C connection, making it easier to connect to most Android devices (unfortunately, iPhones are not supported).

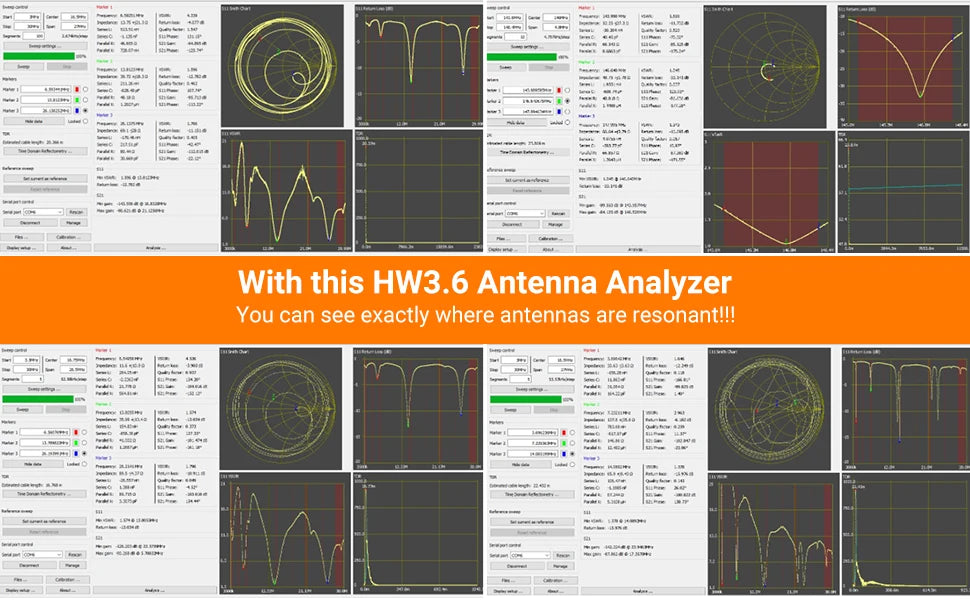

Time Domain Analysis (TDR) Support: This advanced feature allows you to visualize and troubleshoot signal reflections, making it an essential tool for tuning antennas and ensuring optimal performance.

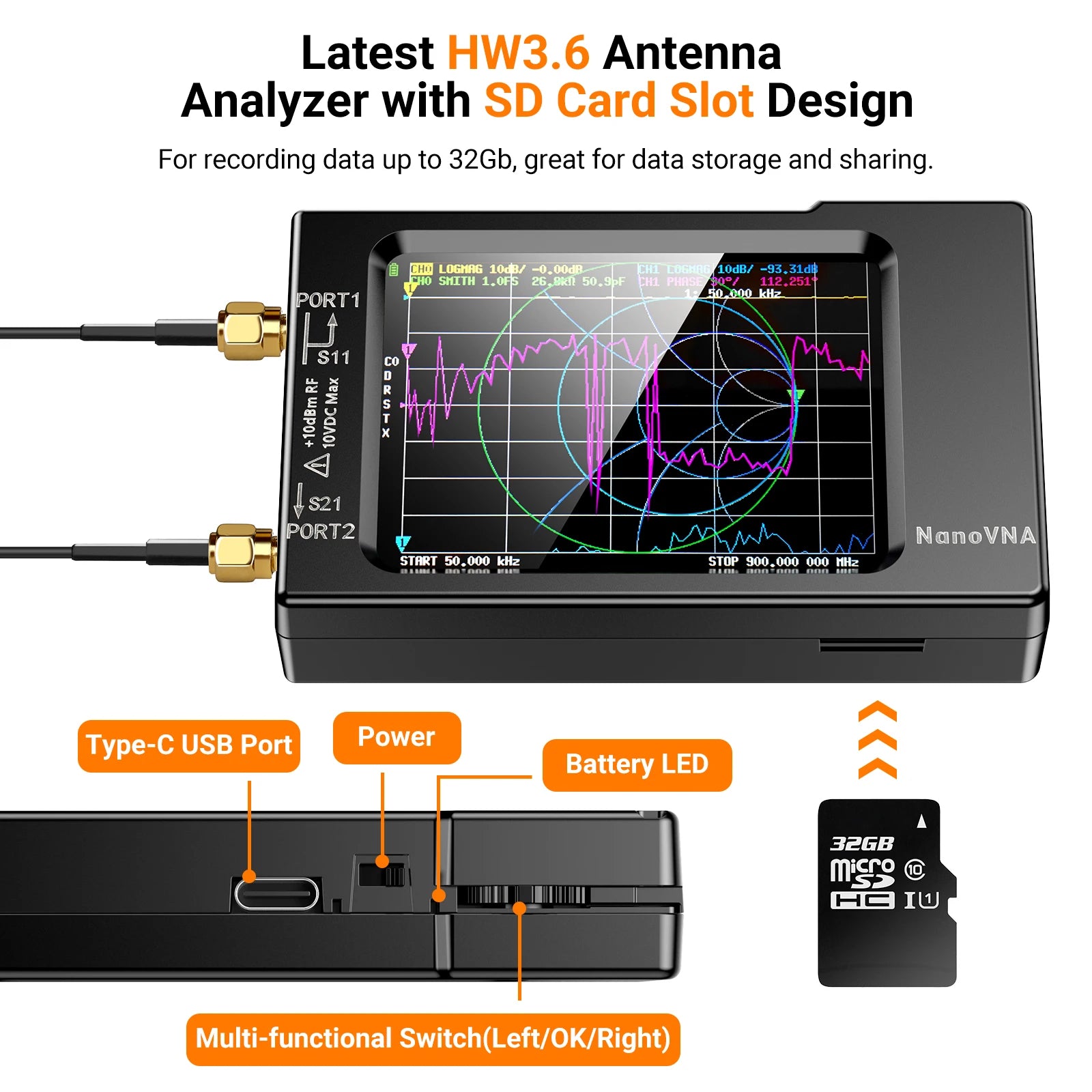

Battery Life and Charging: The built-in 650mAh battery ensures long-lasting use, while the USB Type-C charging port offers quick and efficient recharging, so you can spend more time testing and less time waiting.

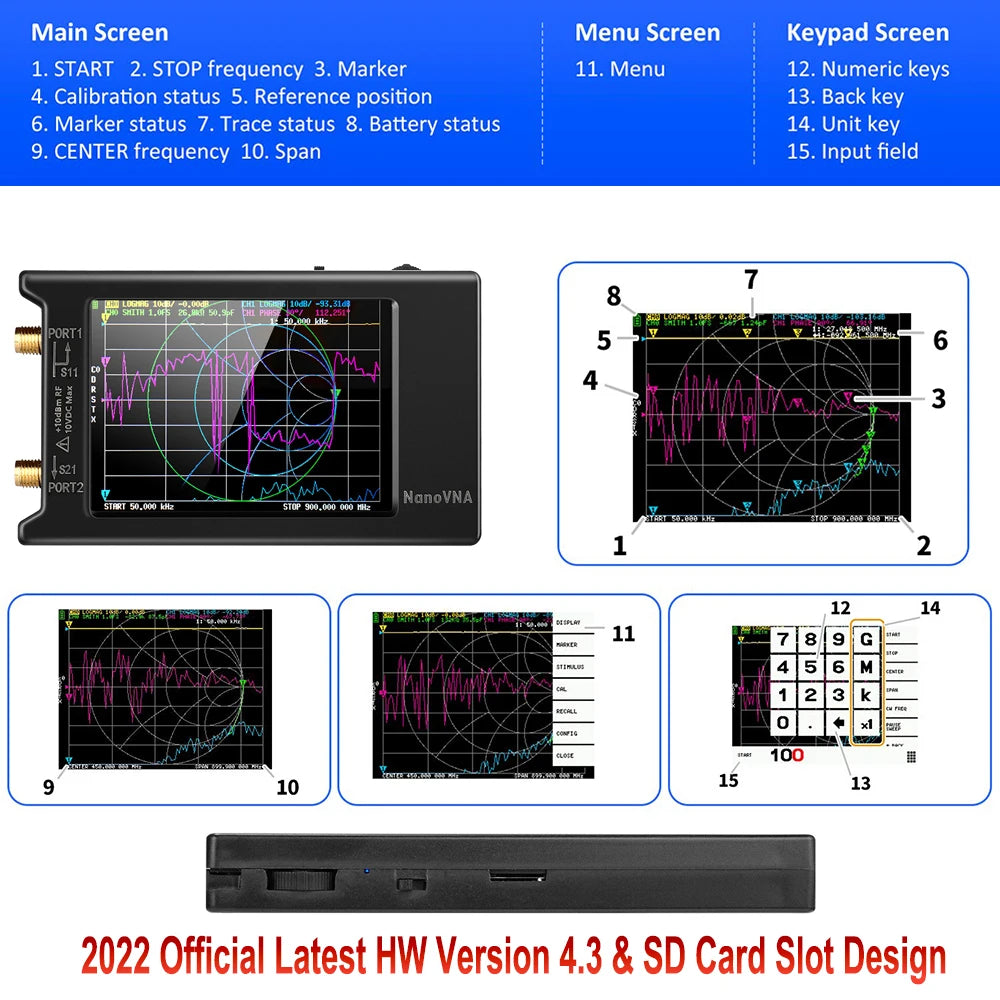

Crystal Clear Display: With an intuitive interface and improved brightness, this analyzer solves the common problem of small and dim screens. You'll be able to analyze data with ease, even in bright conditions.
Improved Packaging for Protection: The new packaging design uses a world-cover hot stamping carton and plastic inner protection, ensuring that your NanoVNA-H4 arrives safe and sound, no matter the shipping conditions.
Key Features at a Glance:

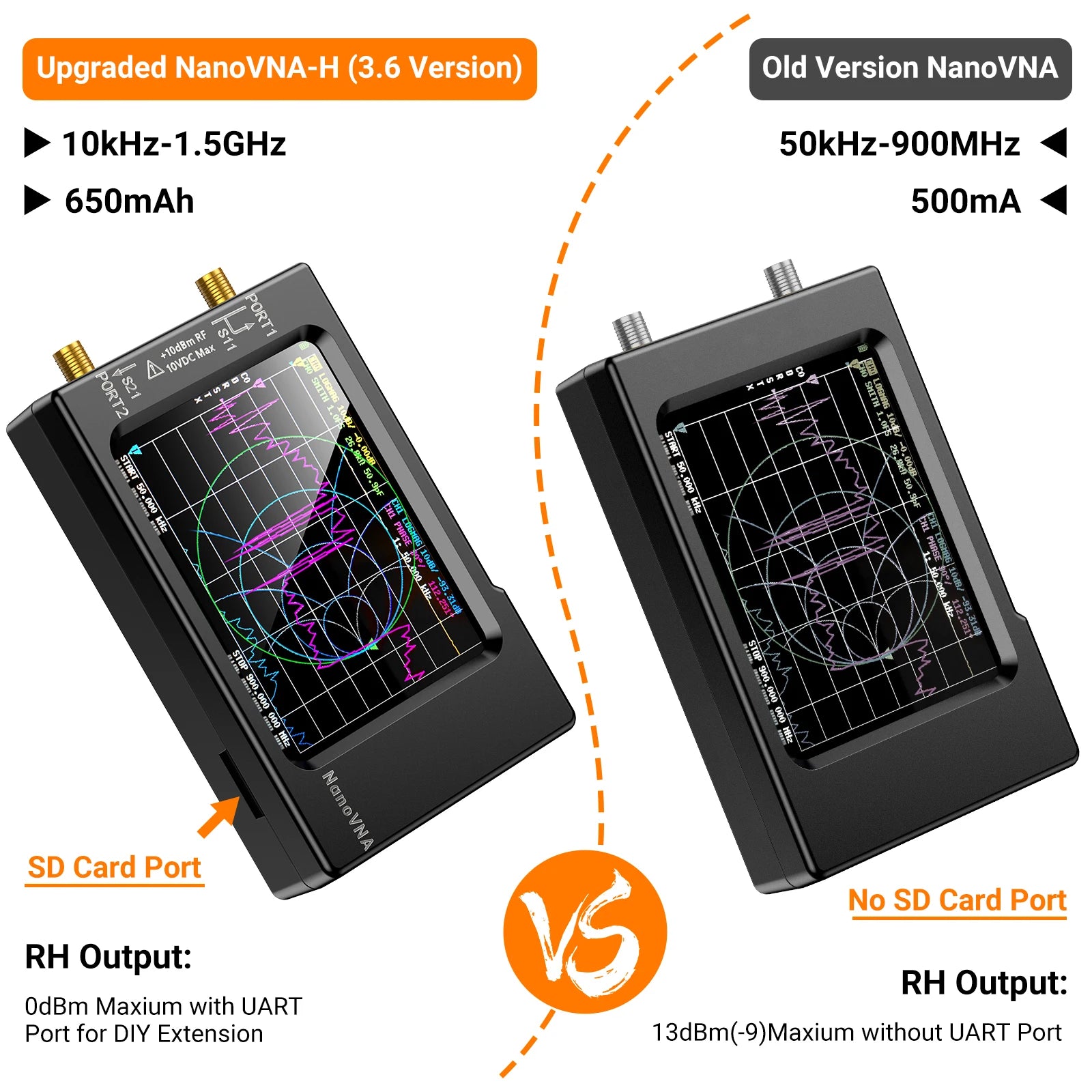

Frequency Range: 10KHz to 1.5GHz (MF, HF, VHF, UHF) – perfect for analyzing a wide variety of RF signals.
Measurement Accuracy: With a frequency accuracy of <0.5ppm, you can trust the results you get from this spectrum analyzer.

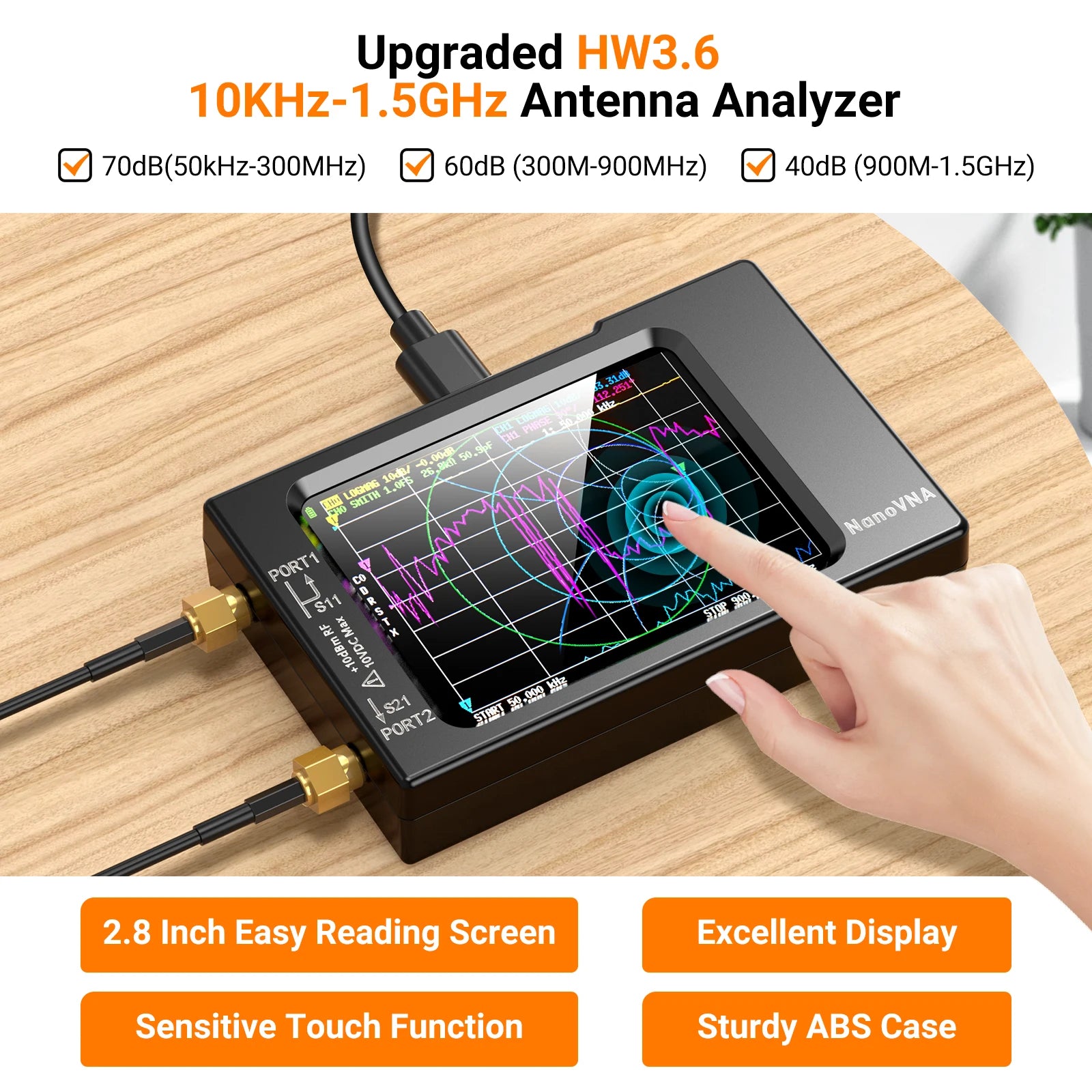

Dynamic Range: 70dB (50kHz-300MHz), 50dB (300M-600MHz), 40dB (600M-900MHz) – extended firmware available for more range.
Multiple Measurement Functions: This device can measure S parameters, voltage standing wave ratio (VSWR), phase, delay, and more, providing you with a comprehensive analysis of your RF system's performance.
User-Friendly Interface: The analyzer features 4 display tracking markers and 4 measurement markers, allowing you to track your signals with precision.
Calibration Kit Included: The package comes with a complete SMA calibration kit (Short, Open, Load) to ensure accurate readings.
Perfect for:

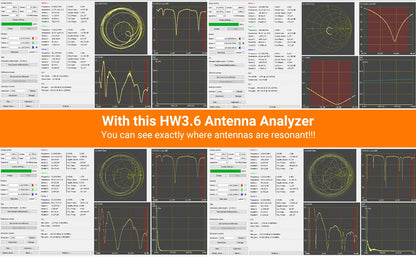

Antenna Testing & Tuning: Whether you’re working with MF, HF, VHF, or UHF antennas, the NanoVNA-H4 is your ultimate tool for tuning and troubleshooting.
RF Engineers & Hobbyists: Ideal for professionals and enthusiasts alike, the NanoVNA-H4 is the perfect tool to improve your RF projects and optimize performance.
Signal Testing & Measurement: Measure and analyze the strength, quality, and characteristics of signals across a wide frequency range.

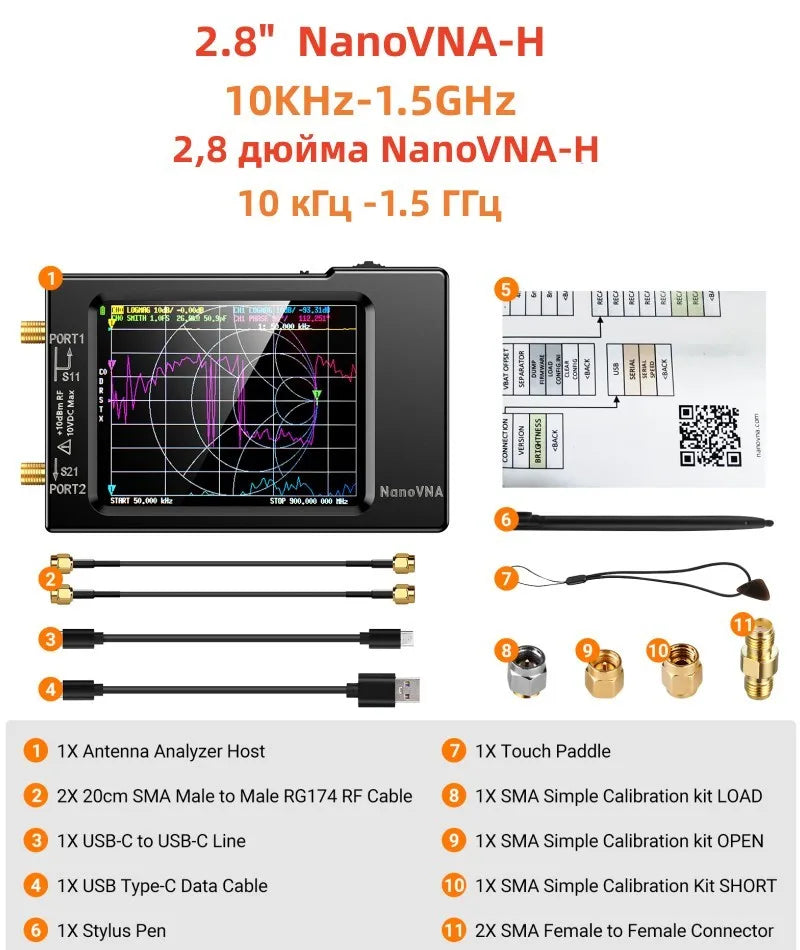

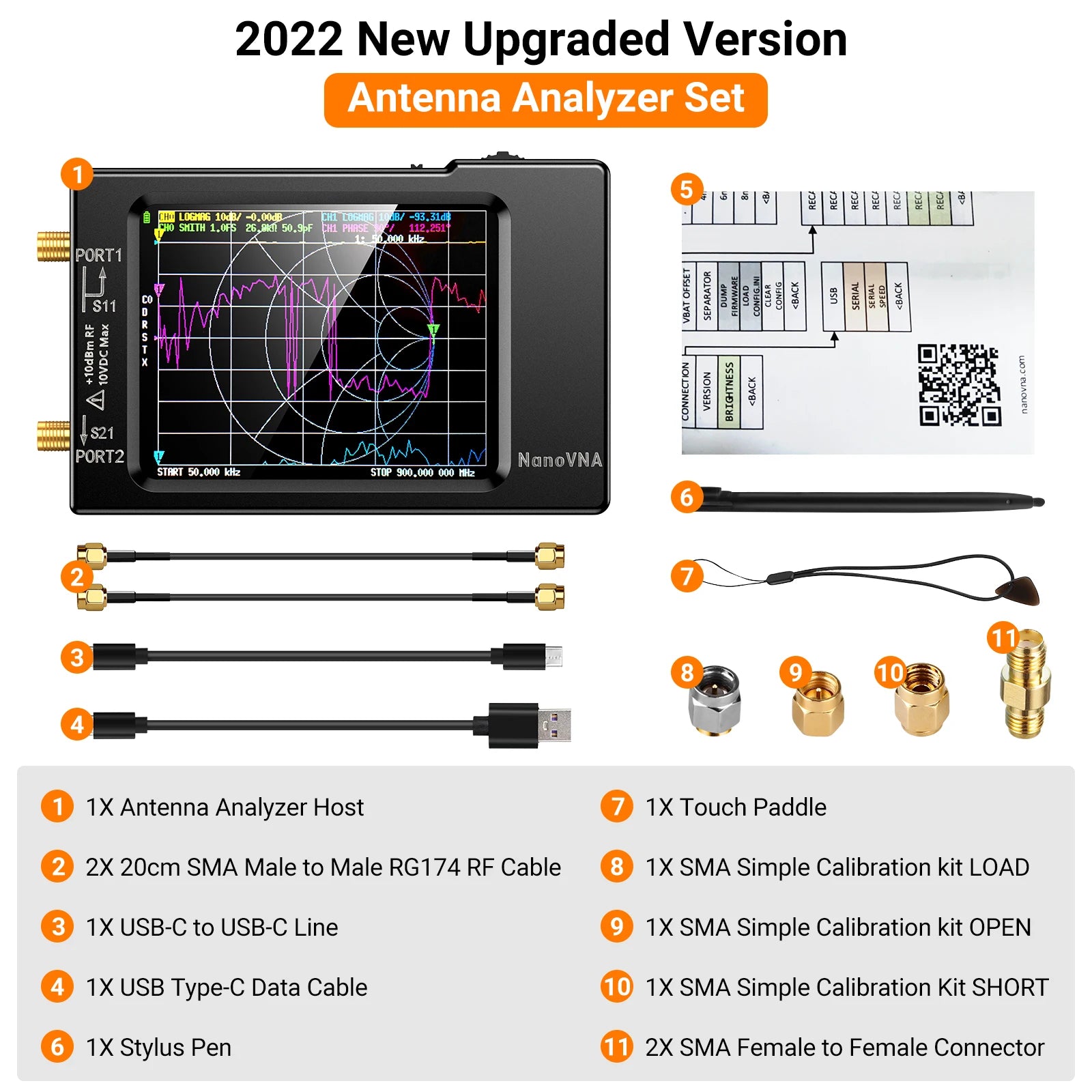

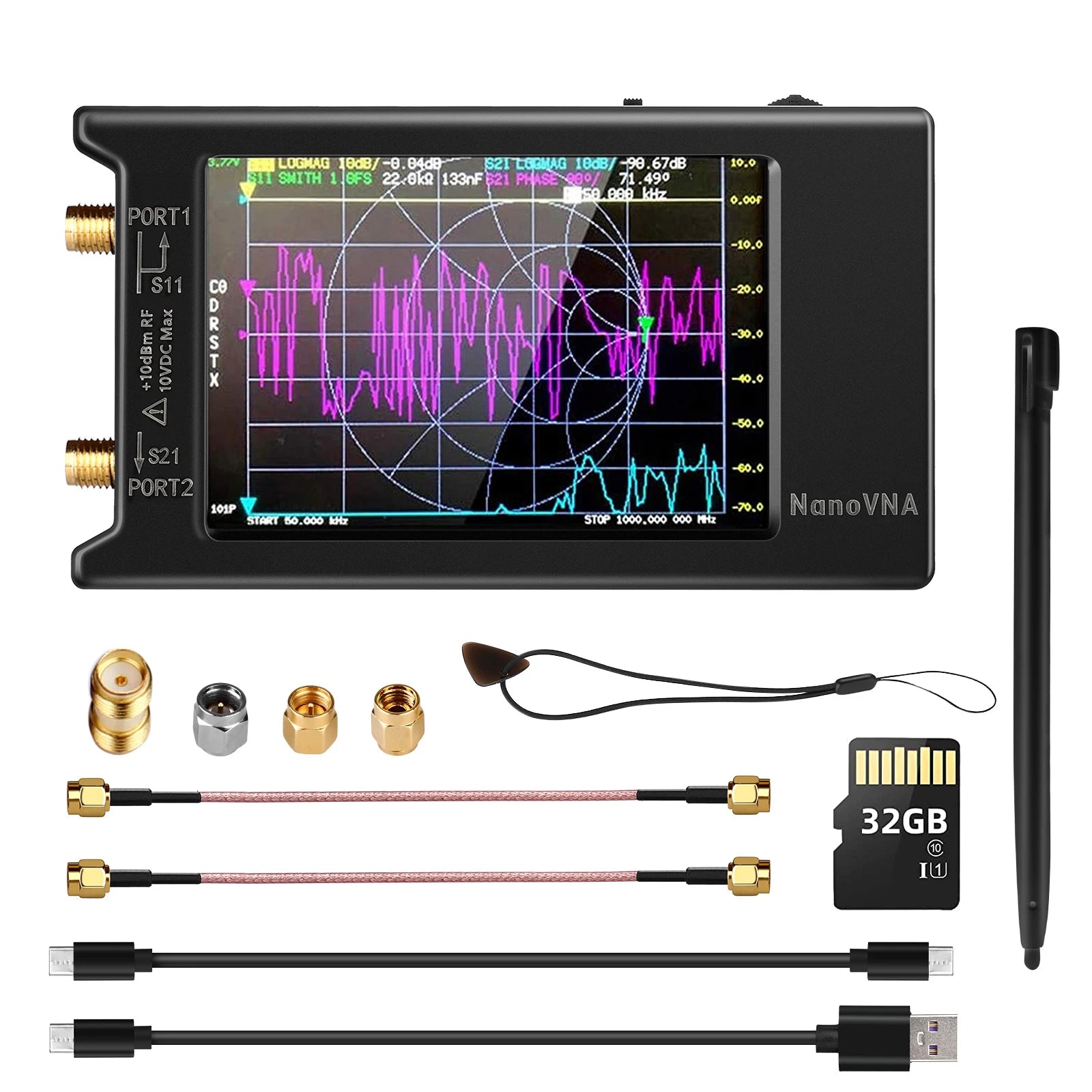

What’s in the Box?
1x NanoVNA-H4 Spectrum Analyzer with 2.8” touch screen and built-in 650mAh battery
2x 20cm SMA Male-to-Male RG174 RF Cables
2x SMA Female-to-Female Connectors
1x SMA Simple Calibration Kit (SHORT, OPEN, LOAD)
1x USB Type-C Data Cable
1x Type-C to Type-C Cable
1x Touch Paddle
Upgrade your RF testing experience with the Spectrum Analyzer NanoVNA-H4 and make your antenna measurements more precise and convenient. Whether you're optimizing your antenna system or experimenting with RF technology, this powerful, portable tool is designed to meet your needs with accuracy and ease. Get your hands on the NanoVNA-H4 today and take your RF projects to the next level!
